Structural features:

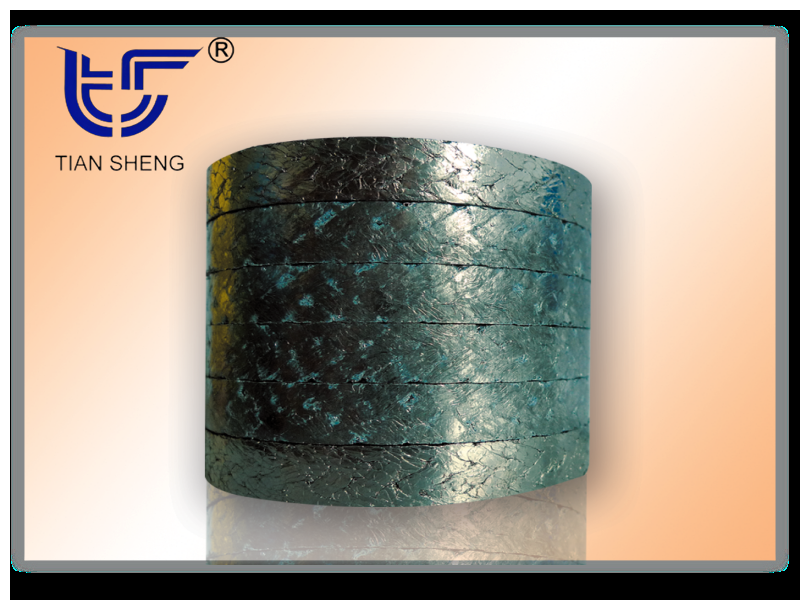

TS 308-AV-6 consists of a rectangular cross-section packing ring pressed with special graphite fiber braided packing.
Application scope:
The unique structural design and manufacturing process allow TS 308-AV-6 to be installed behind the valve. Even under harsh conditions such as ultra-low temperature, high temperature and high pressure, the valve stem can still maintain zero fugitive emissions after thousands of reciprocating movements, achieving an ideal sealing effect.
Technical parameters:
performance | unit | TS308-AV-4 | TS308-AV-6 |
Leak rate | Pa·m 3/s | 1.0x10-7 | 1.0x10-9 |
temperature | ℃ | -200~ +350 | -200~ +450 |
pressure | MPa | ≤35 | ≤45 |
Rebound rate | % | ≥35 | ≥35 |
Compression rate | % | 10～25 | 10～25 |
Seal specific pressure Y | MPa | 25～30 | 25～30 |
stress relaxation | % | ＜10 | ＜10 |
Passed certification | API 622 and ISO 15848-1 | ||
