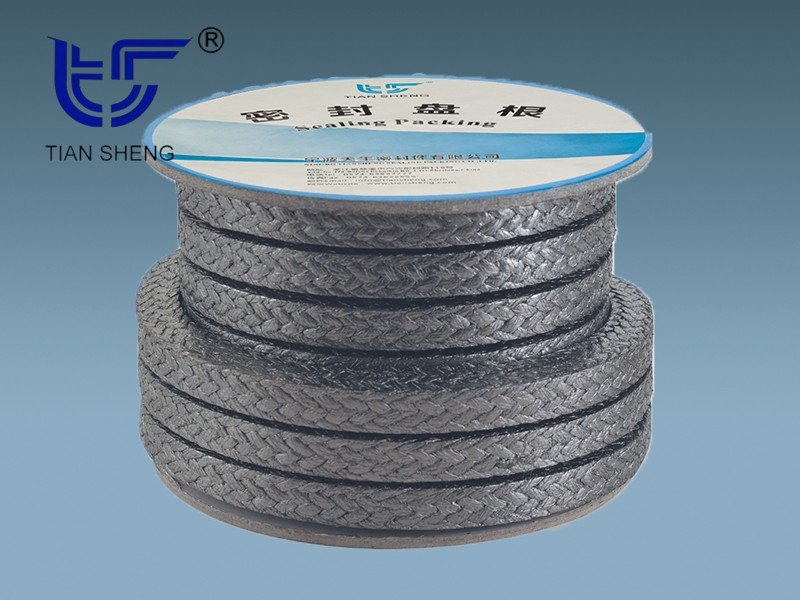

TS 309 glass fiber and Inconel wire-reinforced graphite filler is woven from glass fiber-reinforced flexible graphite wires, and each glass fiber-reinforced graphite wire is reinforced with Inconel wire. It has the characteristics of low loss on ignition, high temperature and high pressure resistance.
application:
TS 309 is widely used in valves, pumps, mixers, agitators, etc. in petrochemical, papermaking, power stations, oil refining and other industrial sectors under high temperature and high pressure harsh working conditions. Suitable for most chemical media, acids, alkali, etc., especially suitable for high temperature and high pressure steam media.
Technical parameters | Rotary pump | reciprocating pump | valve |
Pressure (bar) | 30 | 100 | 250 |
Line speed (m/s) | 0-30 | ||
Temperature ℃ | -200℃～+450℃ | ||
pH value | 0～14 | ||
