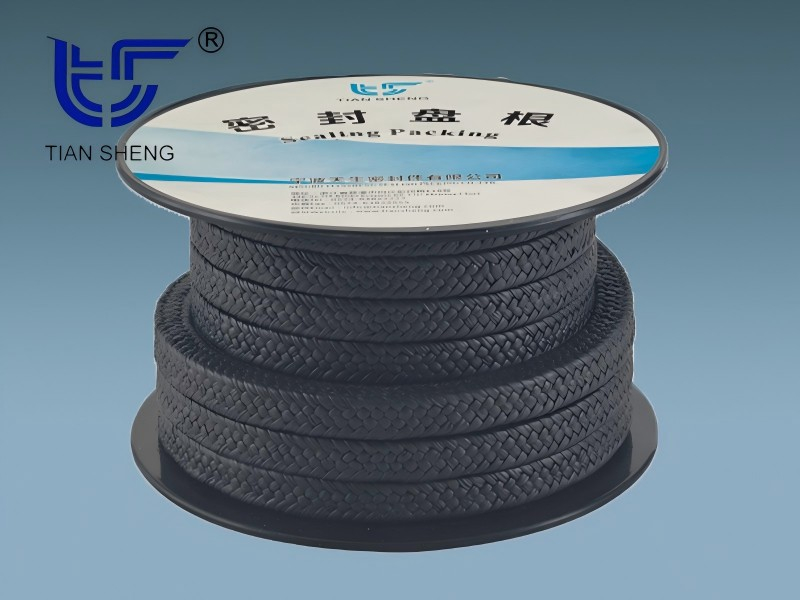

TS 406 graphite PTFE filler is woven from PTFE threads specially treated with graphite. There are no graphite particles on the surface of the filler. TS 406 has strong tensile strength, high thermal conductivity, stable performance and low friction coefficient.
application:
TS 406 is suitable for agitators, mixers, heat exchangers and centrifugal pumps in petrochemical, chemical, food, pharmaceutical, papermaking, electric power and other industrial sectors. In addition to strong oxidizing media, it is suitable for most media.
Technical parameters | Rotary pump | reciprocating pump | valve |
Pressure (bar) | 20 | 80 | 120 |
Line speed (m/s) | 18 | ||
Temperature ℃ | -100℃～+260℃ | ||
pH value | 0～14 | ||
