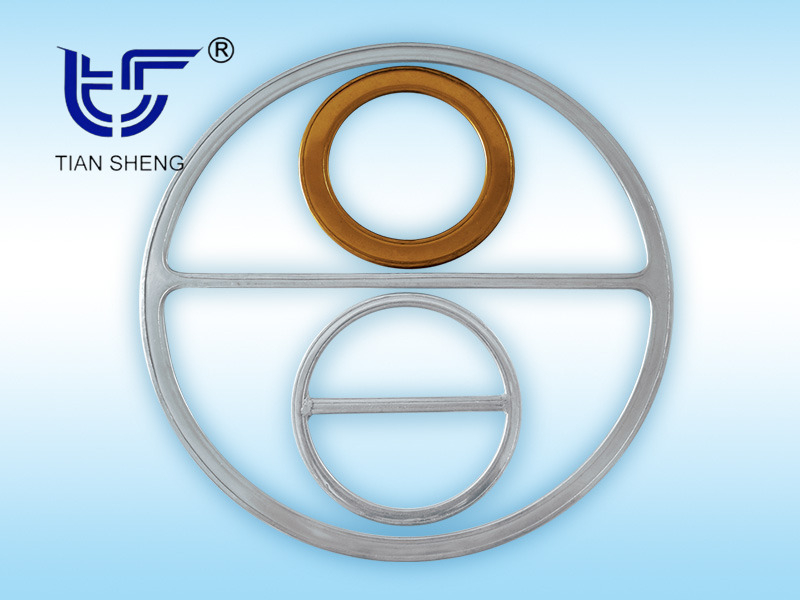

TS G4 Metal Clad Gasket

Features:

TS G4  metal-coated gaskets are composed of soft filling materials that are partially or entirely covered in a metal shell. The filling materials give the gaskets good resilience, while the metal-coated shells protect the filling materials from high temperature, high pressure, and corrosive media.

application:

TS G4 metal-coated gaskets are suitable for gasket sealing of pipelines, valves, pressure vessels, heat exchangers, pumps, etc. in various media (such as steam, oil, hydrocarbons, water, hot water, organic solutions, oxygen, cryogenic gases, liquefied petroleum gas, etc.). The upper limit of the operating pressure is 100bar, and the operating temperature range depends on the material. The upper temperature limit can reach 1050°C.

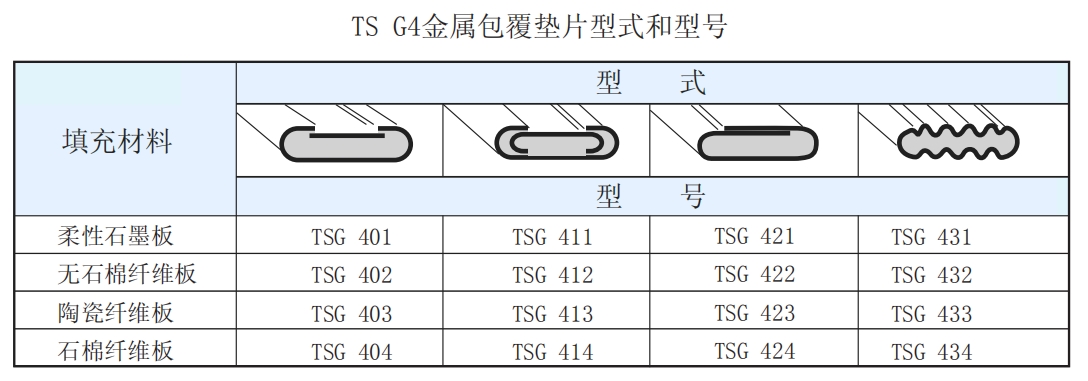

Types and models:

TS G4 metal-coated gaskets can be manufactured into circular, square, rectangular and other shapes, and their cross-sections are also available in various types, as shown in the table below.

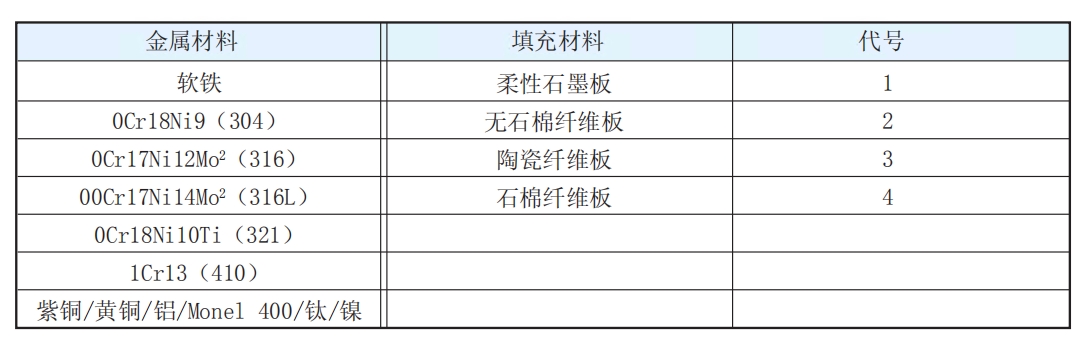

Material:
