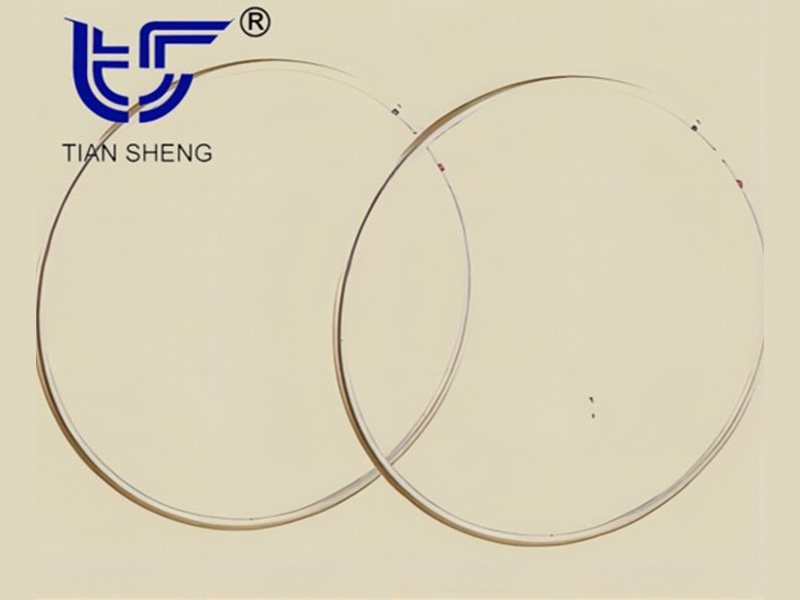

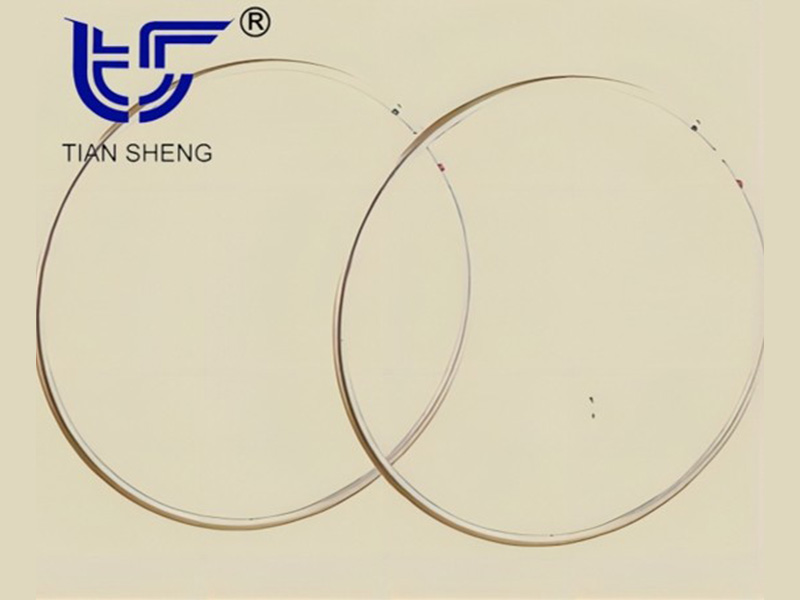

TS G91 metal 0-shaped sealing ring

Features:

TS G91 metal O-ring sealing ring is made of bent metal pipe, and the surface is electroplated, such as silver, nickel, cadmium, indium, or coated with soft materials, such as PTFE. Depending on the operating pressure, temperature and nature of the sealing medium,

Pipes are made of different metal materials, usually copper, stainless steel, high-temperature alloys, etc.

advantage:

◆  Good resilience performance;

◆  Excellent stress relaxation resistance;

◆  Resistant to chemical corrosion and nuclear radiation;

◆  The tightening load of bolts is smaller than that of metal washers;

◆  Can achieve very low leakage rate: <10-9Pa·m3/s (helium, △P=1bar).

application:

TS G91 metal O-ring sealing ring is used in sealing requirements and high sealing reliability occasions that traditional elastomers and other non-metallic seals cannot meet, such as high vacuum, high temperature, high pressure, high speed, vibration or cyclic load conditions. It has become an important seal in vacuum, ultra-vacuum, cryogenic, automotive, aerospace, nuclear energy, military and other industrial fields.

Main types and models:

According to the cross-sectional shape, TS G91 metal O-ring sealing rings include solid metal O-rings and hollow metal O-rings. TS G91 hollow metal O-ring is made of seamless steel pipe bent into a ring shape and welded at both ends. It can be made into different shapes, such as rectangle, oval and other shapes. The matching flange sealing surface can be a flat-ring groove, a flat surface with a limit ring, three-plane contact, etc. The main types and models of TS G91 metal O-ring sealing rings are shown in the table below.

                                            Types and models of TS G91 metal O-ring seals

Materials and operating temperature range:

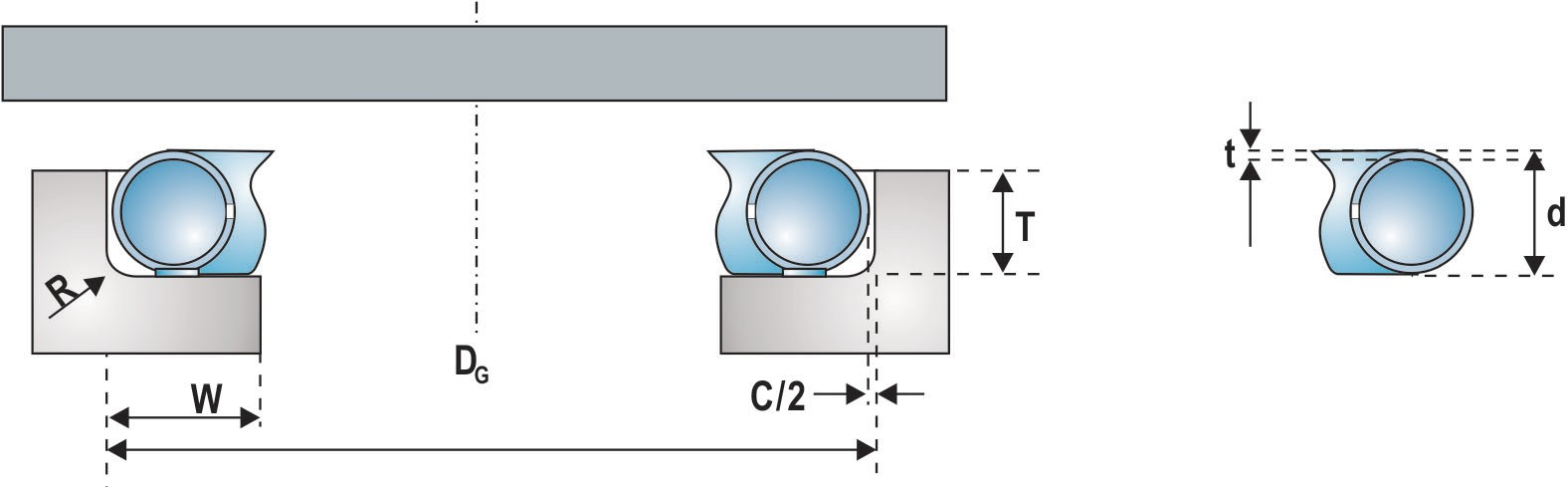

Ring groove dimensions and tolerances:
