Features:

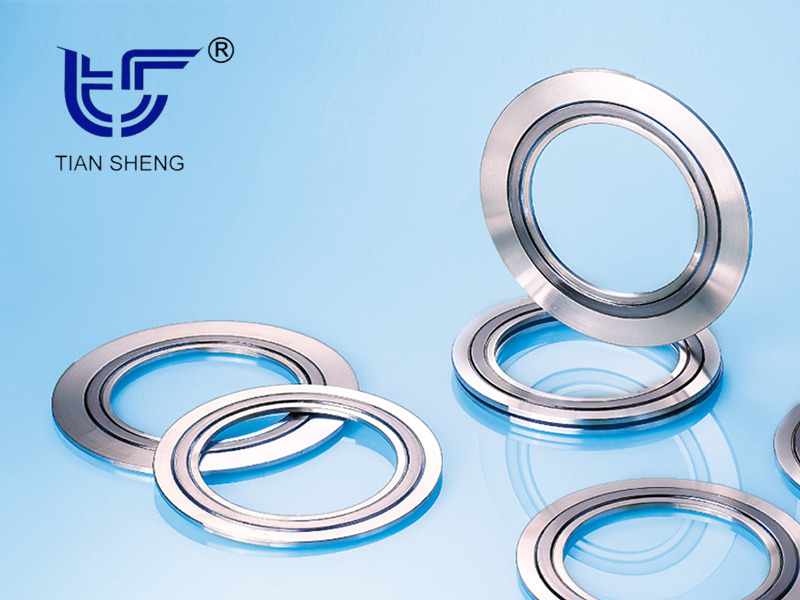

TS N8101 is composed of high-purity flexible graphite rings and 316L internal and external stainless steel rings. The unique patented design and special manufacturing process enable TS N8101 to maintain minimal stress relaxation and achieve high rebound rates under harsh working conditions such as high temperature, high pressure, and frequent temperature and pressure alternations. It is currently the ideal gasket to achieve zero leakage in pipes, flanges, etc.
application:
TS N8101 metal graphite gasket can be widely used in harsh working conditions such as petroleum, chemical industry, refining, nuclear power plants, and valve industries.
medium:
TS N8101 metal graphite gasket can be widely used in harsh working conditions such as petroleum, chemical industry, refining, nuclear power plants, and valve industries.
Technical parameters:
performance | unit | index |
pressure | MPa | ≤42 |
temperature | ℃ | -200~ +450 |
Compression rate | % | 20～30 |
Rebound rate | % | ≥25 |
stress relaxation rate | % | ＜2 |
Leak rate | Pa.m 3/s | 1x10 -8(helium, △P=1bar) |
size | mm | 15～1200 |
