Features:

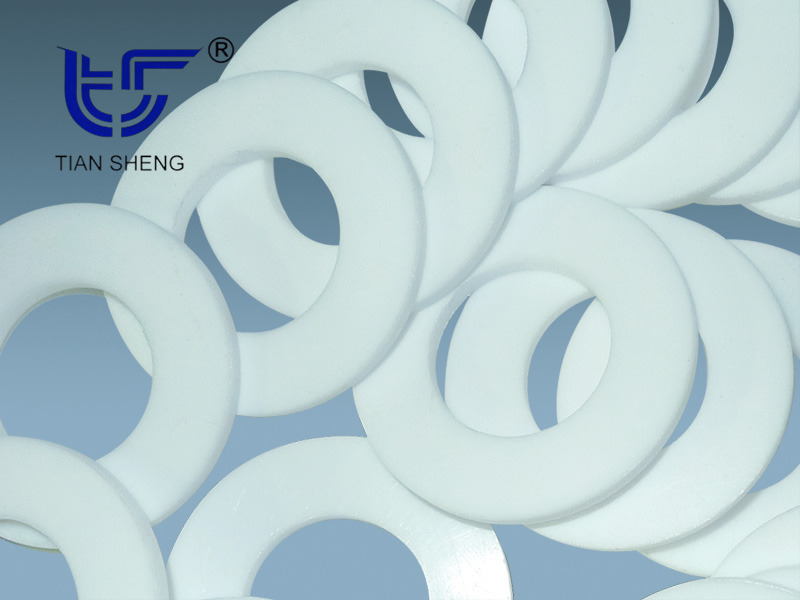

TS G6321 PTFE gasket is made of 100% pure PTFE, does not contain any fillers, has excellent chemical corrosion resistance, is suitable for all pH 0 ~ 14 media except molten alkali metals and high temperature fluorine compounds, and has excellent electrical insulation properties, anti-adhesion and other advantages. However, there is a tendency for cold flow creep.
application:
TS G6321 PTFE gasket is widely used in flange sealing of equipment and pipelines in chemical, food, pharmaceutical and other industrial sectors. The operating temperature is from -50 to 150℃, and the operating pressure is ≤10bar.
Performance parameters:
The main performance parameters of TS G6321 PTFE gasket are shown in the table below.
Main performance parameters of TS G6321 PTFE gasket
project | unit | index | Remark |
density | g/cm3 | 2.19 | ASTM F1315 |
tensile strength | MPa | 25.4 | ASTM F152 |
Elongation after break | % | 330 | ASTM F152 |
Compression rate | % | 16.7 | ASTM F36 |
Rebound rate | % | 47 | ASTM F36 |
creep relaxation rate | % | 81 | ASTM F38 |
Common specifications:
Common specifications for TS G6321 PTFE gaskets and sheets are shown in the table below.
TS G6321 Common specifications for PTFE gaskets and sheets
plate | Gasket | |
Thickness, mm | 0.5～6.0 | In accordance with ASME, EN, GB, HG, SH, JB and other gasket standards for pressure vessels, equipment or pipe flanges. |
Width × length, mm | 1000×1000 | |
1500×1500 | ||
*For other specifications, please consult our company.
