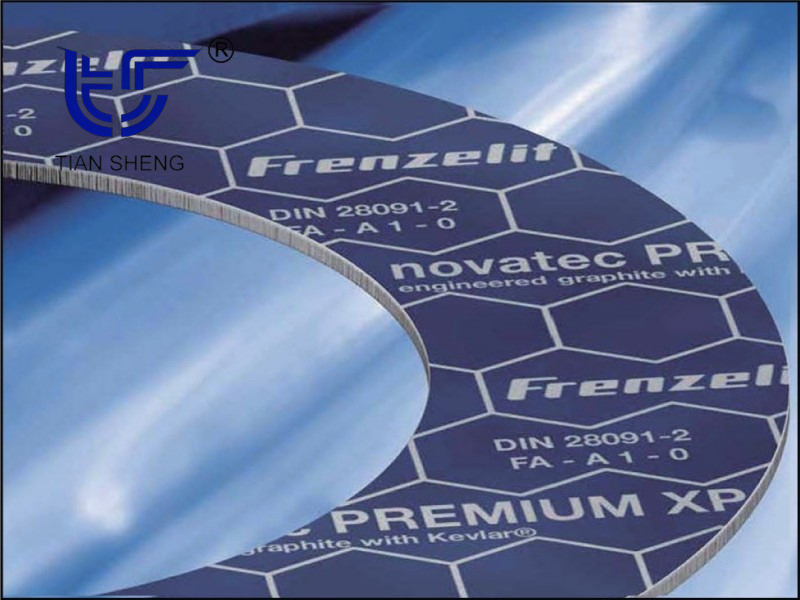

TS G9500 Asbestos Free Graphite Gasket

Availability:

Quantity:



Inquire Add to Basket

Product Description

(NOVATEC ^® PREMIUM XP)

TS G9500 is composed of graphite and Kevlar fiber, and then undergoes double-sided anti-adhesive treatment. Its quality exceeds all other aramid fiber gasket materials on the market. It can meet the L0.01 sealing level of VDI 2290 according to the gasket design requirements of DIN1591-1. This product has high graphite content and low binder content, and is suitable for 80% of a wide range of chemical industrial media. The product has long-term stability and guarantees a high level of safety throughout the entire maintenance cycle. The stress relaxation resistance of this product exceeds that of all traditional high-temperature resistant gaskets. The long service life helps extend the maintenance cycle and reduce costs while ensuring safety. It has good fit for flange surfaces with uneven and rough surfaces. It has high rupture resistance and good flexibility, making it suitable for various industrial applications.

Kevlar® ^is a registered brand of DuPont Company

● Certification
*DVGW German gas and water industry association
*VP 401-HTB waterproof test	Sample size
*W270 Microbiological Approval Standard	-Sample dimensions:
* SVGW Swiss Gas and Water Engineering Association	92492mm
*KTW/WRAS certification for non-metallic components for the drinking water industry	-Internal pressure: 25bar
* BAM120℃/130bar oxygen certification	-Test medium：He
*EC 1935/2004 European Food Grade Testing	Fluid; helium, internal pressure: 25bar
* Germanischer Lloyd Germanischer Lloyd ship certification
* Comply with TA-Luft German air quality control regulations and
VDI 2290 standard
● Physical properties
Overview	adhesive	Nitrile rubber ( NBR)
	fiber	Graphite&Kevlar® fiber
	Anti-stick coating	With double-sided A310 anti-adhesive treatment
	color	Both sides are blue
	Thickness tolerance	According to DIN28 091-1
physical properties	standard	DIN28 091-2 FA-A1-O
	temperature	Max. 450℃
	pressure	Max. 100bar
	density	DIN28 091-2 [g/cm 3] 1.74
	tensile strength longitudinal Horizontal	DIN 52 910 [N/mm 2] 20 [N/mm 2] 18
	Stress relaxation σ dE /16 170℃ 300℃	DIN 52 913 [N/mm 2] 37 [N/mm 2] 30
	Compression rate	ASTM F36J [%] 6
	recovery rate	ASTM F36J [%] 60
	Cold compression ratio ε KSW	DIN28 090-2 [%] 6
	Cold recovery rate ε KSW	DIN28 090-2 [%] 3
	Thermal creep rate ε KSW /200	DIN28 090-2 [%] 8
	Thermal recovery rate ε KSW /200	DIN28 090-2 [%] 2
	Recovery rate R	DIN28 090-2 [mm] 0.04

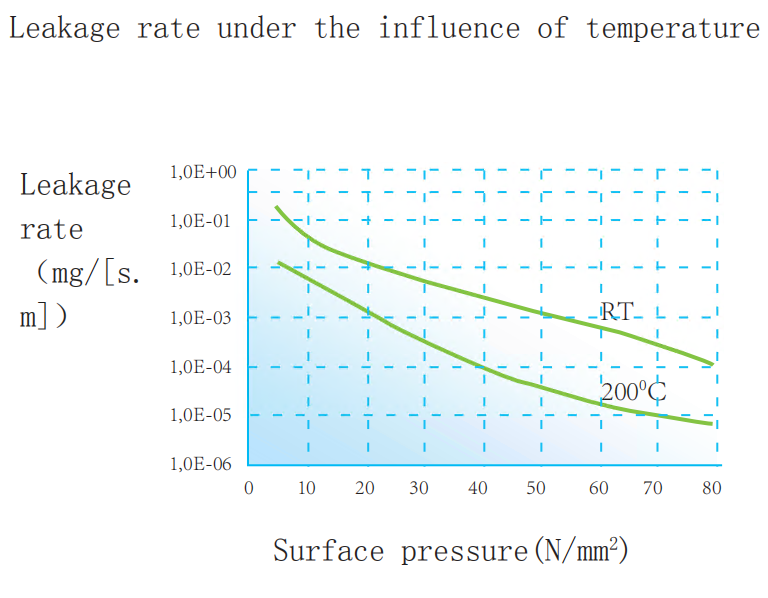

	Leak rate	DIN 3535-6	[mg/(ms)]	≤0.05
	Leakage rate λ2,0	DIN28 090-2	[mg/(ms)]	≤0.05
	Fluid resistance	ASTM F 146
Plate specifications: Width x length (mm) Thickness ( mm) 1500x3000 0.5/0.8 1500x2000 1.0/1.5/2.0/3.0 (Other sizes and thicknesses are negotiable)	IRM 903 Weight change rate Thickness increase rate	5h/150℃	[%] [%]	≤8 ≤5
	Fuel B Weight change rate Thickness increase rate	5h/23℃	[%] [%]	≤8 ≤5
	Leachable chloride content	Siemens AV-9-014[ppm] ≤50
