Features:

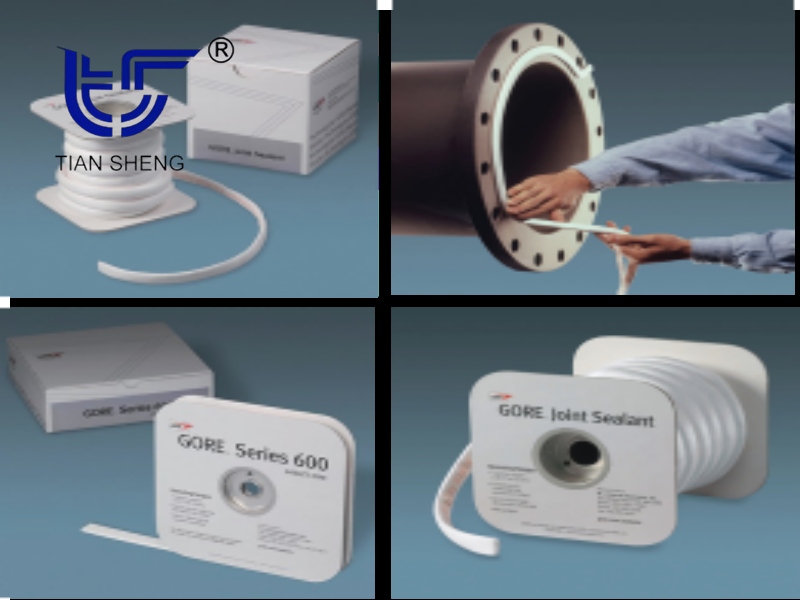

TS G6324 (GORE ® Joint Sealant) expanded PTFE joint sealing strip and TS G6325 (GORE ® SERIES 600) expanded PTFE sealing strip are both made of 100% pure expanded polytetrafluoroethylene (ePTFE) and a unique process. In addition to having all the advantages of PTFE sealing gaskets, the joint sealing strip/ The tape has excellent flexibility and can be formed on site. It can well compensate for the unevenness and roughness of the flange sealing surface to achieve satisfactory sealing. It is also easy to use, assemble and disassemble, reducing downtime and maintenance costs. It is especially suitable for gaskets for large, complex or damaged flanges. Both have good resistance to cold flow creep, ensuring a durable and reliable seal.
application:
TS G6324 (GORE ® Joint Sealant) expanded polytetrafluoroethylene joint sealing strip and TS G6325 (GORE ® SERIES 600) expanded polytetrafluoroethylene sealing tape are suitable for all media with a pH range of 0 to 14, especially for the sealing of large and irregular pipelines and equipment flange sealing surfaces. The operating temperature range is -268~315℃, and the operating pressure range is from vacuum to 200bar.
Common specifications:
The common specifications of TS G6324 (GORE ® Joint Sealant) expanded polytetrafluoroethylene joint sealing strip and TS G6325 (GORE ® SERIES 600) expanded polytetrafluoroethylene sealing tape are shown in the table below.
Common specifications of TS G6324 and TS G6325
TS G6324 ( GORE® Joint Sealant) | TS G6325 (GORE ® SERIES 600) | ||
Thickness, mm | 2～7 | Thickness, mm | 0.5～3.0 |
Length, m | 5～30 | Width x length, mm x m | (10～100)×(5～30) |
*For other specifications, please consult our company
