Features and applications:

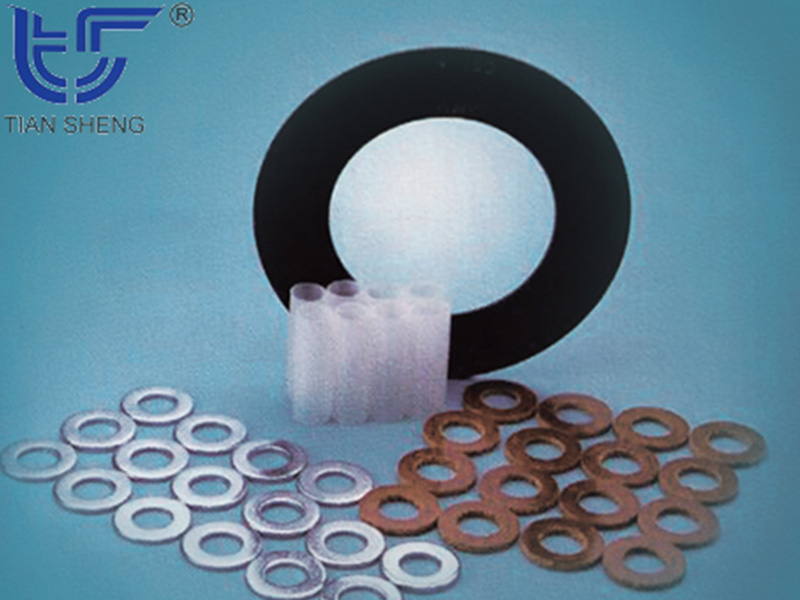

The insulation group is composed of insulating gaskets, bolt insulating sleeves, insulating washers and steel washers. The insulation group is used to electrically insulate two adjacent pipeline flanges to inhibit electrochemical corrosion. It is suitable for the insulation protection of pipelines in offshore, seawater environments, oil refining, petrochemical plants, refineries and other pipelines.
Types, models and applications:
Type | model | application | |
|
Insulating gasket for insulation group | ||
There are no bolt holes. | |||

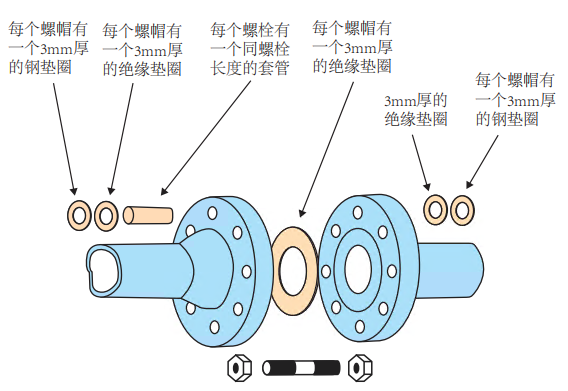

Type F | TSG9100–RF | Installed in the center of the bolt hole | |
Flange sealing surface inside circle | |||
superior. | |||

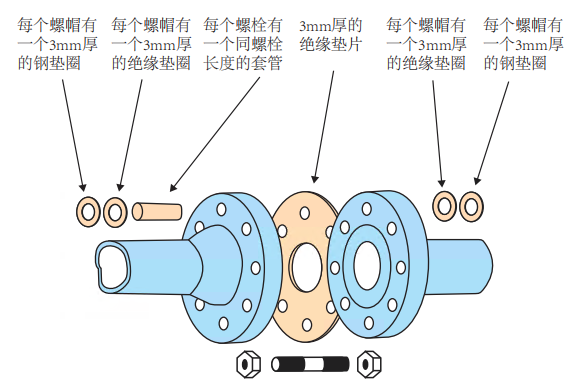

Type E |
|
TSG9200–FF |
The outer diameter of the insulating gasket of the insulation group is consistent with the outer diameter of the flange ring. When the bolt holes opened in the gasket and the bolts are accurately in place, insufficient flange insulation can be prevented. |
Material:
(1) Insulating gasket
name | grade | water absorbency % | Tensile strength psi | Compression strength psi | Bending strength psi | Dielectric strength VPM | Continuous operating temperature ℃ limit |
Bakelite ( cloth ) Linen/Cloth Reinforced Phenolic |
CE |
3.5 |
12000 |
34000 |
17500 |
400 |
125 |
Bakelite (paper) Phenolic & Paper Laminate |
XP |
1.5 |
18000 |
45000 |
29000 |
600 |
130 |
Rubber coated Bakelite Neoprene/NBR Faced Phenolic&PaperLaminate |
XPN |
1.5 |
18000 |
45000 |
29000 |
600 |
130 |
Glass fiber reinforced epoxy resin Class Fiber Reinforced Epoxy | FR4/G10 |
0.01 |
40000 |
66000 |
65000 |
800 |
140 |
Glass fiber reinforced epoxy resin Class Fiber Reinforced Epoxy | FR5/G11 |
0.20 |
43000 |
63000 |
80000 |
900 |
180 |
Glass fiber reinforced silicone rubber Class Fiber Reinforced Silicone | G7 |
0.19 |
22000 |
40000 |
18500 |
350 |
220 |
Glass fiber reinforced phenolic resin Class Fiber Reinforced Phenolic Resin | G3 |
2.0 |
42000 |
76000 |
55000 |
375 |
325 |
(2) Insulating sleeve and gasket materials
name |
grade |
Water absorption % |
Dielectric strength VPM |
Continuous operating temperature ℃ limit |
PolyethylenePolyethylene |
- |
0.01 |
450 |
41 |
Bakelite Phenolic & Paper Laminate |
LE |
1.1 |
400-500 |
107 |
Glass fiber reinforced epoxy resin Class Fiber Reinforced Epoxy |
FR4/G10 |
0.01 |
800 |
140 |
Polyester FilmPolyester Film |
Mylar® |
0.8 |
4000 |
149 |
Aramid Fiber |
Nomex® |
- |
400 |
232 |
