Features:

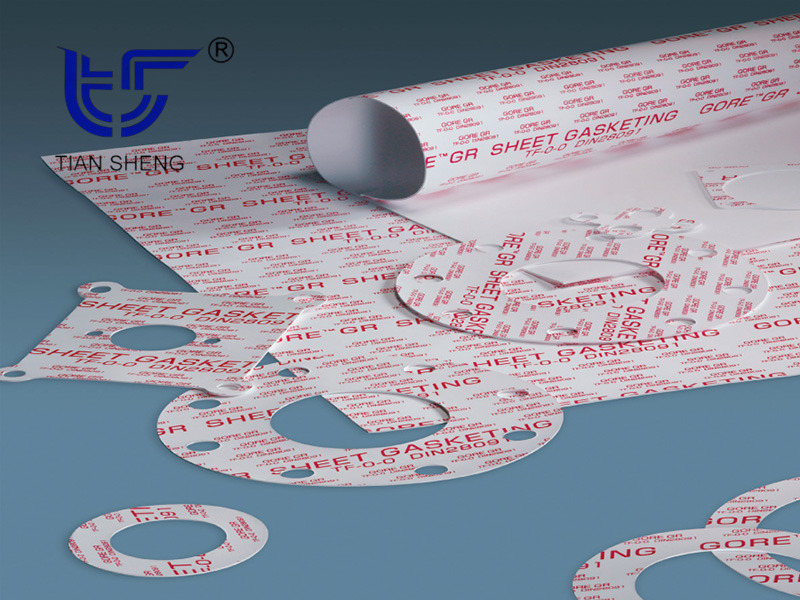

TS G6323 (GORE® GR) expanded polytetrafluoroethylene gasket/plate is made of 100% pure expanded polytetrafluoroethylene. It has all the advantages of polytetrafluoroethylene and is resistant to corrosion by most chemical media. In particular, it improves the shortcomings of easy cold flow relaxation. It has the characteristics of high strength and blowout resistance, and is very easy to use and install, ensuring durable and reliable sealing performance.
application:
TS G6323 (GORE® GR) expanded polytetrafluoroethylene gasket/plate is suitable for round or special-shaped gasket sealing of new and old equipment and pipeline flanges in highly corrosive media (pH 0~14). The operating temperature range is -268~315℃, and the operating pressure range is from vacuum to 200bar.
Common specifications:
Common specifications for TS G6323 (GORE® GR) expanded PTFE gaskets and sheets
plate | Gasket | |
Thickness, mm | 0.5~6.0 | ASME, EN, GB, HG, SH, JB and other containers, equipment or pipes |
Width x length, mm | 1500×1500 | Gaskets are standard for road flanges. |
*For other specifications, please consult our company.
