(Novapress® basic )

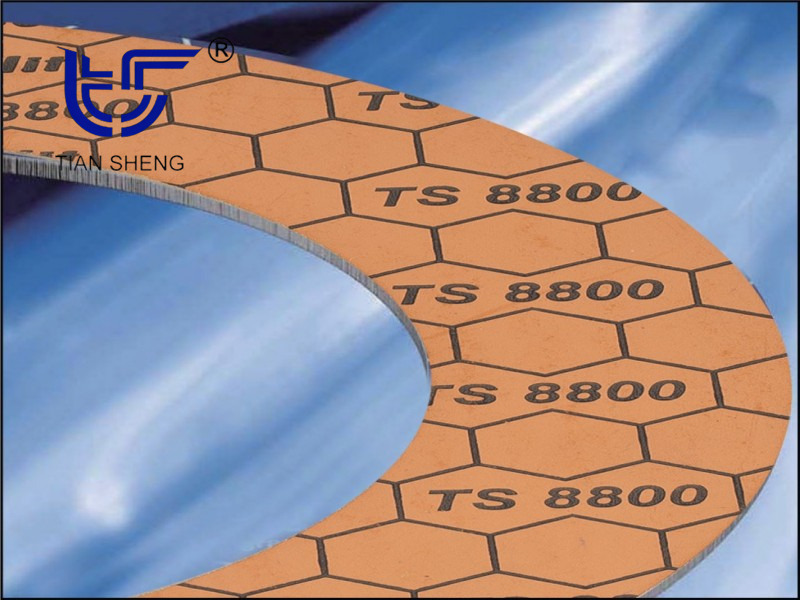

It is an asbestos-free gasket produced in Germany. It is composed of aramid fiber, nitrile rubber (NBR) and special fillers. After anti-adhesion treatment, it has good fluid compatibility and stress relaxation resistance. It can achieve good sealing effect on gases and other fluids, and the price is low. Suitable for public projects, chemical plants, steel plants, shipyards, refineries, power plants, pipeline engineering, and machine manufacturing.
● Certification |  | |
*DVGW German gas and water industry association | ||
*VP 401-HTB fire test | ||
* SVGW Swiss Gas and Water Engineering Association | ||
*KTW/WRAS certification for non-metallic components for the drinking water industry | ||
● Physical properties | ||
Overview | adhesive | Nitrile rubber ( NBR) |
fiber | Aramid | |
surface treatment | With single-sided A310 anti-adhesive treatment | |
color | Orange on both sides | |
Dimensional tolerance | According to DIN28 091-1 | |
physical properties | temperature | - 50~ 300℃ |
pressure | Max. 85 bar | |
density | DIN 28 090-2[g/cm 3] 1.7 | |
tensile strength longitudinal Horizontal | DIN 52 910 [N/mm 2] 14 [N/mm 2] 6 | |
Stress relaxation σ dE /16 175℃ 300℃ | DIN 52 913 [N/mm 2] 28 [N/mm 2] 18 | |
Compression rate | ASTM F36J [%] 6 | |
recovery rate | ASTM F36J [%] 55 | |
Cold compression ratio ε KSW | DIN28 090-2 [%] 8 | |
Cold recovery rate ε KSW | DIN28 090-2 [%] 3 | |
Thermal creep rate ε KSW /200 | DIN28 090-2 [%] 22 | |
Thermal recovery rate ε KSW /200 | DIN28 090-2 [%] 2 | |
Rebound rate R | DIN28 090-2 [mm] 0.04 | |
specific leakage rate | DIN 3535-6 [mg/(ms)] ≤0.100 | |
Specific leakage rate λ 2,0 | DIN28 090-2 [mg/(ms)] 0.100 | |
Fluid resistance | ASTM F 146 | |
Plate specifications: Width x length (mm) Thickness ( mm) 1500x3000 0.5/0.75 1.0/1.5/2.0/3.0 (Other sizes and thicknesses are negotiable) | ASTM IRM903 Weight change rate Thickness increase rate | 5h/150℃ [%] 7 [%] 2 |
ASTM B Fuel Note Weight change rate Thickness increase rate | 5h/23℃ [%] 7 [%] 4 | |
Leachable chloride content | FZT PV-001-133 [ppm] ≤150 | |
