Features:

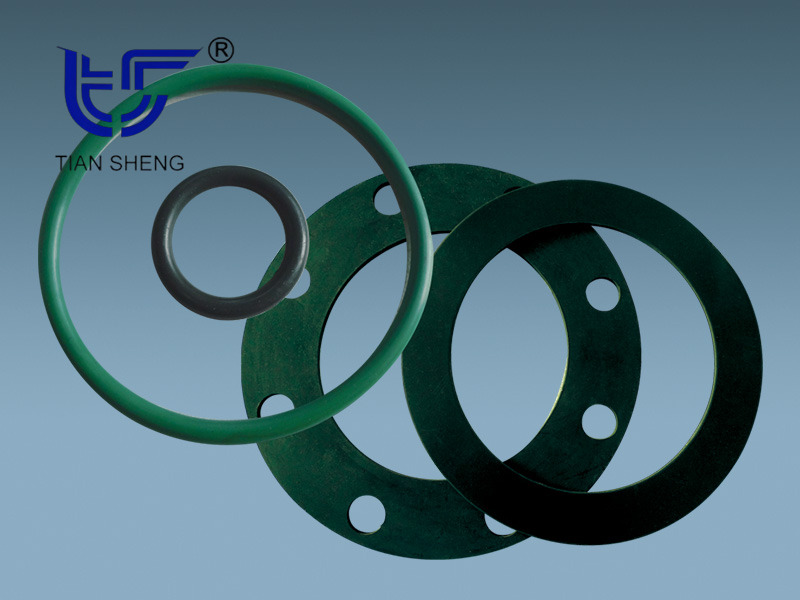

TS G65 rubber gasket is a synthetic rubber made by vulcanizing various natural or/and synthetic rubbers with fillers and additives. It has excellent compressibility and resilience under low compression load, so it can have good sealing performance under low pressure, low temperature and compatible media under low tightening force. It can also achieve good sealing effect when used on uneven or damaged flange sealing surfaces.
application:
TS G65 rubber gaskets include flat gaskets, O-rings, fire plugs, dust boots, special-shaped extruded strips and other rubber sealing products in various shapes to meet different needs and solve leakage problems in power generation, oil refining, petrochemicals, metallurgy, machinery, shipbuilding, pharmaceuticals, aerospace, etc.
Performance parameters:
Main performance parameters of TS G65 rubber gasket
model | Material code | Material | hardness ±5 | Operating temperature range, ℃ | Application occasions | |
lower limit | upper limit | |||||
TS G6501 |
NR | Natural RubberNatural Rubber |
65 |
-50 |
90 | Inorganic salts, ammonia, weak acids and bases, etc. |
TS G6502 |
CR | Neoprene Neoprene | 60 | -20 | 90 | Salt water, common refrigerant, carbon dioxide, non-oxidizing dilute acid, alkali, etc. |
TS G6503 |
NBR |
Nitrile rubber |
60 |
-20 |
90 | Hydraulic oil, glycol and oils in water-sensitive emulsions , 、inorganic and animal and vegetable oils 、, hot water, fuels, petroleum, dilute acids, alkalis and low-temperature salt solutions, silicone oils and greases. |
TS G6504 |
IIR | Butyl rubberButyl |
65 |
-30 |
120 | Hot water, grease, acid, alkali solution, electrode solvent, ozone, etc. |
TS G6505 |
FKM | Viton ® |
70 |
-30 |
120 | Thermal oil, aromatic solvents, chemicals, vegetable oils and greases, natural gas, fuel (including alcohol), ozone, etc. |
TS G6506 |
EPDM | EPDM rubber Etyhlene Propyiendiene |
60 |
-20 |
90 | Steam, hot water, air, dilute acid, vegetable oil and grease, fireproof hydraulic fluid, dilute salt solution, ozone, etc. |
TS G6507 | SBR | Styrene-butadiene rubber Sytrene Butadiene |
60 | -30 | 90 | Water, alcohol, ethylene glycol, ketone, silicone oil and grease, weak acid, etc. |
TS G6508 |
SI |
Silicone rubber |
60 |
-55 |
150 | Hot air, oxygen, water, mechanical and transmission oils, animal and vegetable oils and greases, petroleum-free brake fluids, fireproof hydraulic fluids, dilute salt solutions, ozone, etc. |
